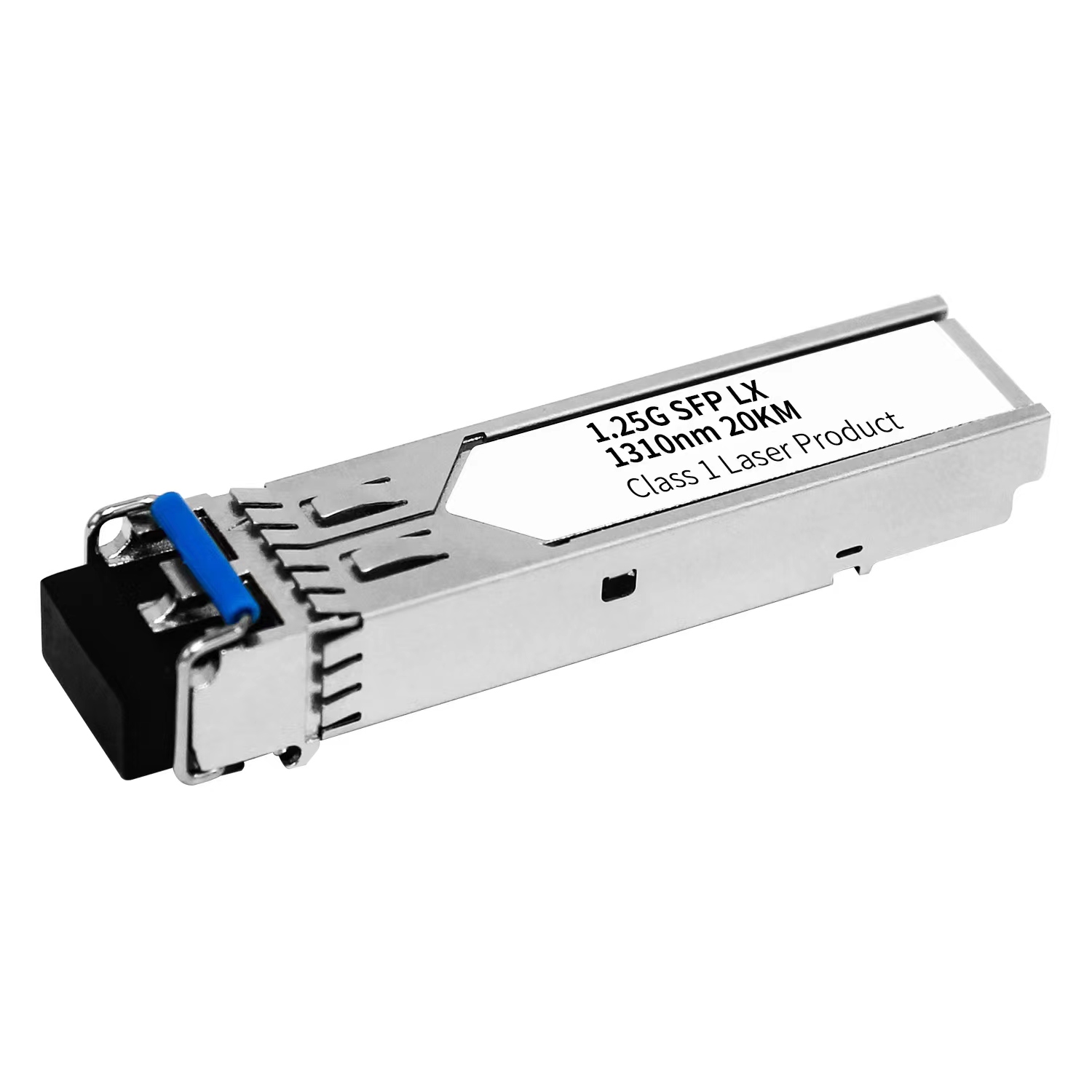

1.25G SFP LX 1310NM 20KM Duplex LC SMF

Product Highlights

  • Max. Power Consumption 1W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable SFP MSA Compliant
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Support Real-time Configuration
  • Compliant to IEEE 802.3z Gigabit Ethernet
  • Class 1 FDA Laser Safety and RoHS Compliant

Product Details:

SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications:

Additional information

Data Rate

1.25G

Form Factor

SFP

Model

LX

Wavelength

1310NM

Reach

20KM

Connector

Deuplex LC

Media

SMF

TX

FP

RX

PIN

Temperature

C Temp
